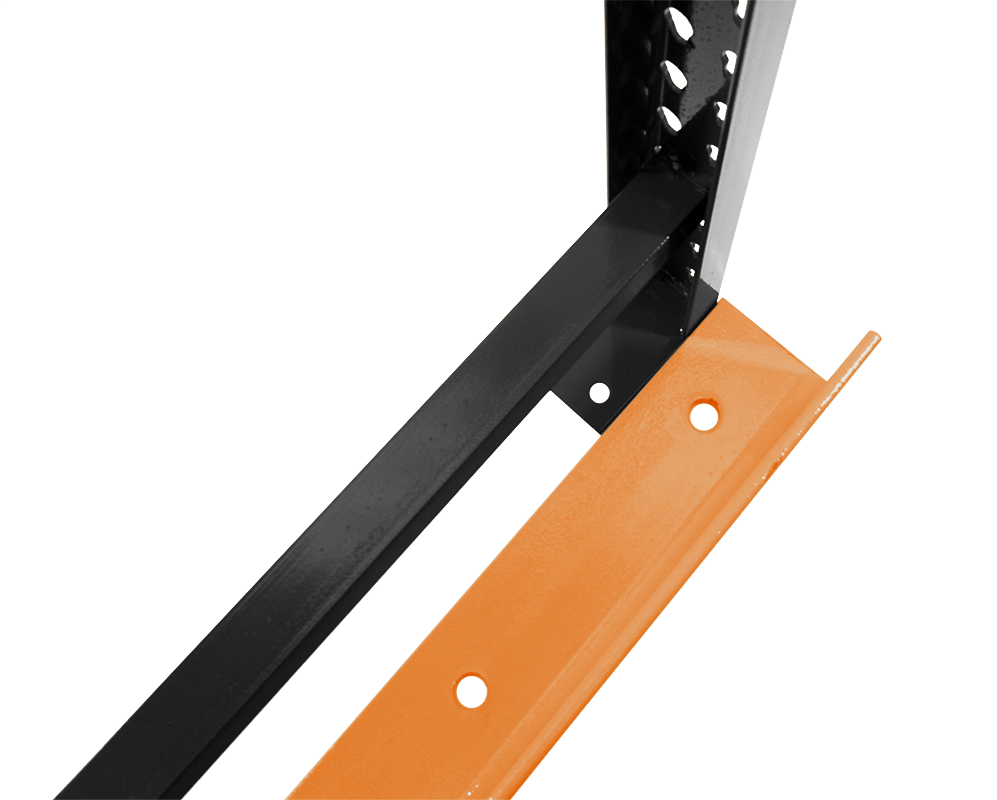

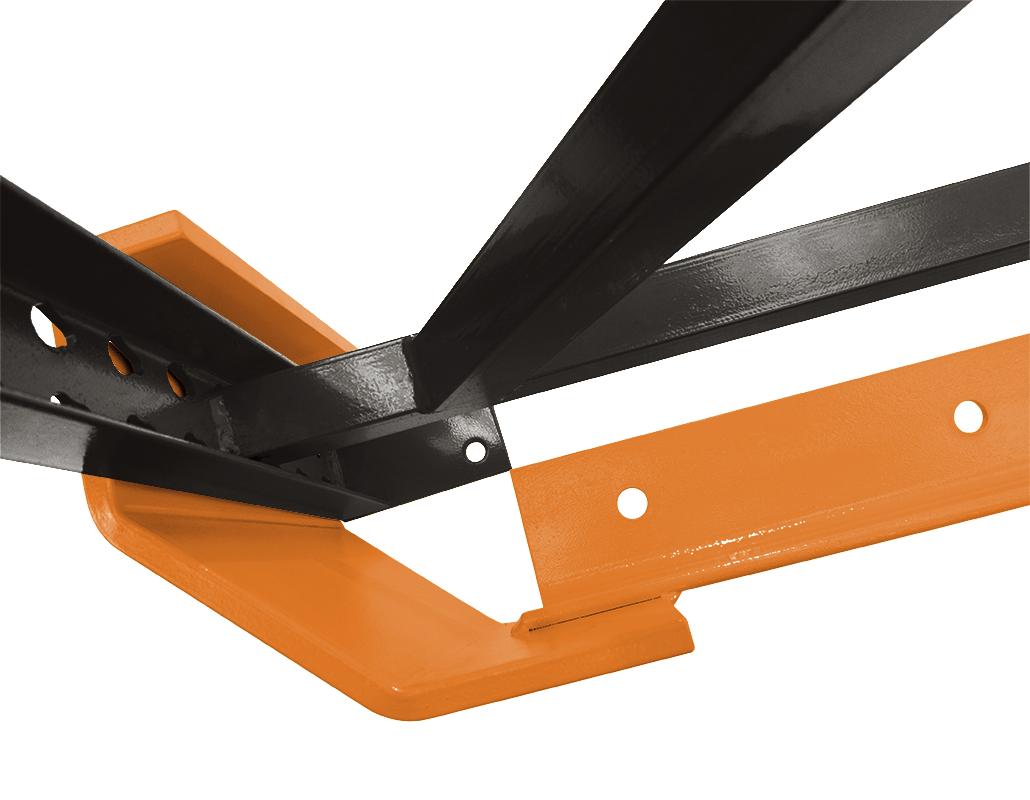

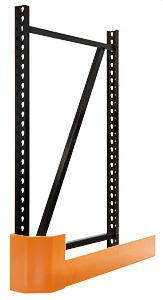

DAMO AISLE GUARD Formed VNA Top View Detail

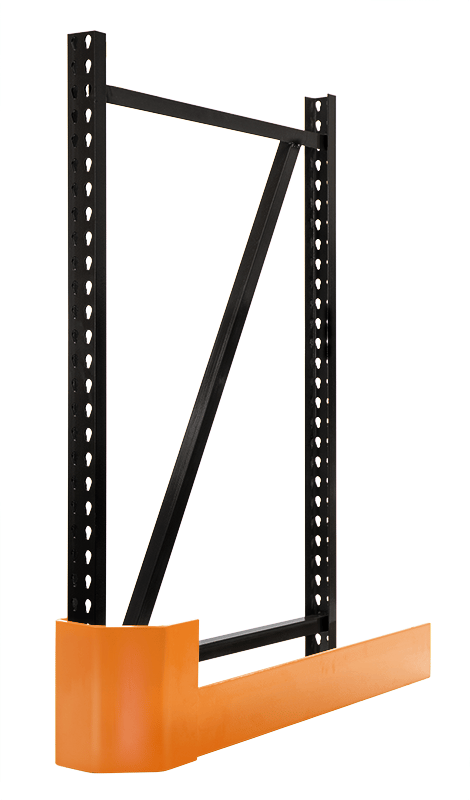

Optimal Solution for Narrow Aisle Configurations

The VNA option of DAMO AISLE GUARD offers robust protection for pallet racking systems in high-density storage environments like Very Narrow Aisle (VNA) configurations. VNA setups demand precision and careful handling, as lift trucks operate in confined spaces with minimal clearance. This increases the risk of accidental impacts that can compromise the structural integrity of rack uprights. Our aisle guard is engineered to shield uprights from these collisions. Its durable construction ensures reliable performance, making it an essential safety solution for warehouses prioritizing efficiency and rack longevity in space-constrained layouts.

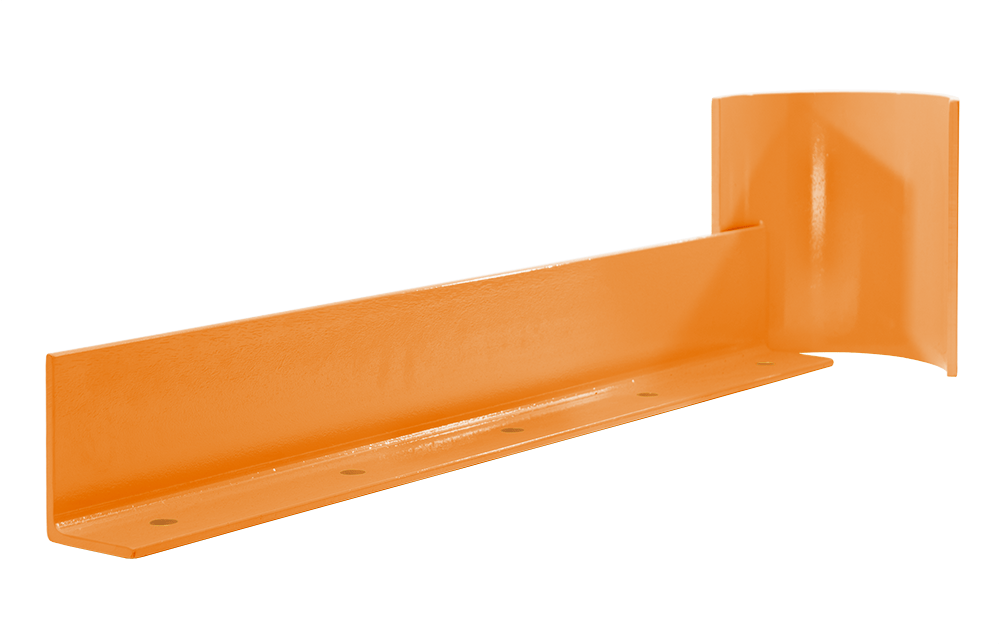

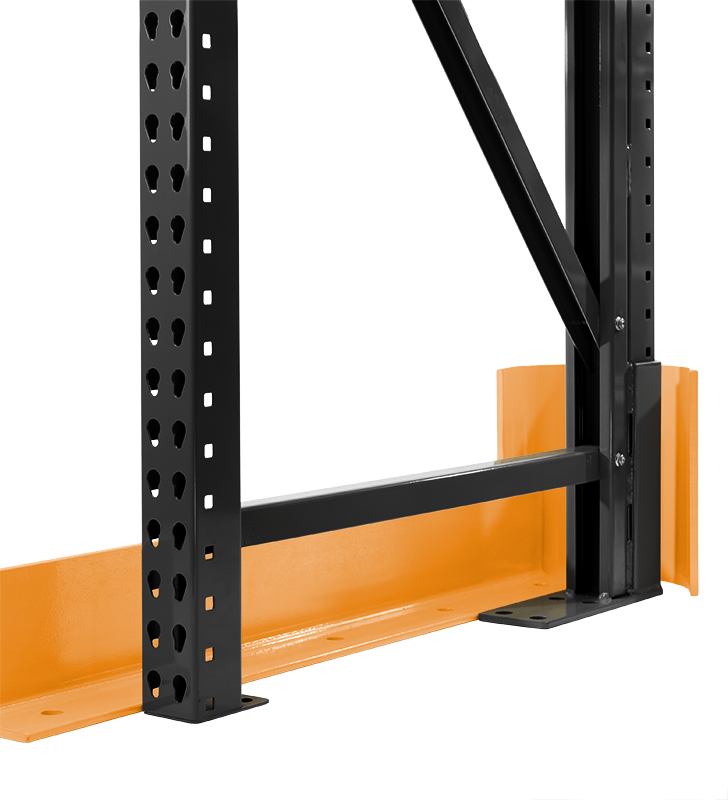

DAMO AISLE GUARD Back View

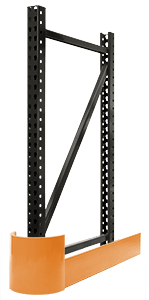

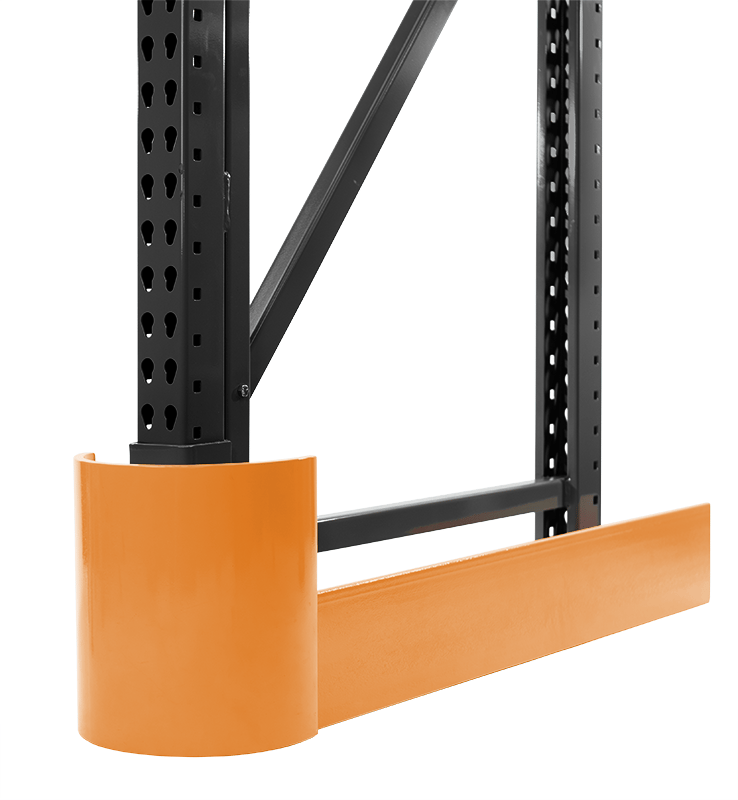

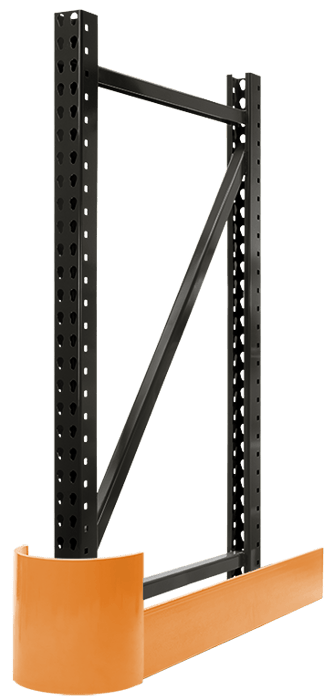

Durable Protection in Tunnel and Drive-Through Racking

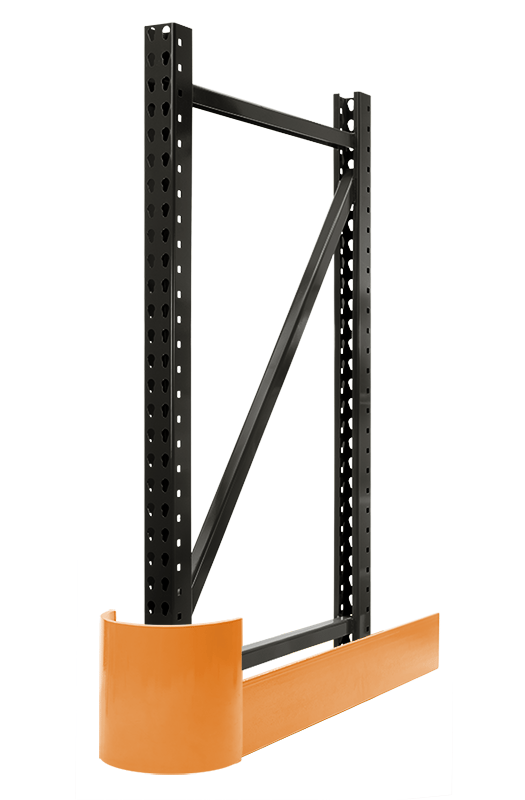

The rounded DAMO AISLE GUARD protects pallet racks in high-traffic areas, especially in tunnel or drive-through configurations. These areas are prone to frequent forklift movement, increasing the risk of accidental impacts that can damage rack systems. The Aisle Guard acts as a robust barrier, safeguarding both the structural integrity of the racking and the safety of operators. Its durable design ensures reliable performance, making it a critical safety solution for warehouses with tunnels or high-access zones. Standard guard accepts up to a 5 1/2" wide frame footplate.

Benefits of DAMO AISLE GUARD

Heavy Duty

We use high-quality structural steel with a heavy gauge to offer maximum impact resistance.

For Any Type of Rack

DAMO AISLE GUARD will protect any rack, even those no longer manufactured.

Solidly Anchored

All of our products come with the necessary anchors. They are robust and easy to install.

Custom Units

Our units are made to measure, but we also offer the possibility of choosing a special paint color, galvanizing the unit or modifying the dimensions when requested.

Safer Warehouse

A safe warehouse is good for everyone; it reduces stress for managers and is likely to increase employee productivity.

Bolt-On Kits

Our guards are the toughest on the market and welded at our manufacturing plant. No welding is required on-site.

CONTACT US

Our protection products are meant to help you prevent pallet rack damage before it happens, eliminating the need for costly replacement and contributing to the improvement of safety in your warehouse. We recommend starting with areas where forklift traffic is heavy, at the end of aisles where there is a greater risk of contact with the racking system. Our robust line of protection units is a simple and inexpensive way of safeguarding your investment and protecting your employees.

Permanent

Our protection products are permanent and robust, come with a warranty, and offer full peace of mind.

Quick Delivery

Lead time for Damotech products is short. Guarding units are generally ready to ship in weeks.

Less Disruptive

The installation process is quick and easy, and unloading is usually not required. All these reasons make our protection products a smart solution and a sound investment in the long term.

Our protection units come in standard sizes but can also be made to measure for your specific needs. We'll custom-build the units to your exact requirements, no matter the dimensions, finish (paint color, galvanization), or rack configuration.

Our experts will visit your warehouse, make all the necessary measurements, and specify the right product for each location.

Our certified installers or your maintenance crew can install our protection products in under 15 minutes. It's a simple and inexpensive way of protecting your racking investment against forklift damage.

All of our products come with the necessary anchors. They are time-saving and easy to install.

At Damotech, we stand behind our products. DAMO AISLE GUARD comes with a 10-year manufacturer's warranty. This means we guarantee the product will be free from defects in material and workmanship.

Download Warranty Sheet

1 2 3 4 5
1 Existing Rack Frame
Existing rolled-formed or structural racking frame. Guards are compatible with drives-ins, tunnels, VNA configurations.
2 Front Deflector
Rounded 12" tall, 1/2" thick with rounded ends (made from 10" Schedule 60 pipe), protects the front frame post. Welded to side angle.
3 Row end Guard
6" x 4" X 3/8" angle protects the frame on the side and rear post. All lengths over 24" up to 60" (additional punched angle available to extend guard length).
4 Concrete Anchors
Four 3/4" x 7" anchors are included on standard lengths. Number of anchors varies based on guard length. Transfers impact energy to the floor.
5 Powder-Coated Paint
Powder coat painted to standard safety orange. Other colors are available for additional fees.
Product sheet - DAMO AISLE GUARD

FAQ

How long will it take to manufacture and ship the protection units?
FAQ arrow

Lead-time is generally within weeks.

Has an engineer tested your protection solutions?
FAQ arrow

Yes. All our products are tested and approved by professional engineers and are put through rigorous testing before they become part of our product line.

What kind of paint do you use on your products?
FAQ arrow

Our products are powder-coated. This means a high-quality finish that withstands the roughest and toughest conditions. It provides a durable and attractive finish that reduces the risk of scratches, chipping, abrasions, corrosion, fading, and other wear issues.

Can I purchase a galvanized version of your products?
FAQ arrow

Yes, you can. All our products can be galvanized—an additional fee applies.

Why is pricing not listed on your website?
FAQ arrow

We don’t skirt around the subject of pricing. We like to know what things cost, too.

Our rack protection and repair products are made-to-measure. Consequently, our pricing will factor in size, geographic location, volume, freight, and installation costs. A rack expert will most likely visit your warehouse to assess the damage and take the necessary measurements for a perfect product fit and a detailed quote containing no surprises.

To get more information on pricing, request a free quote or call 1 (877) 990-3266, and let us demonstrate the value of our products and services.



Was DAMO AISLE GUARD previously a Mac Rak product?
FAQ arrow

Yes, DAMO AISLE GUARD was originally a Mac Rak product. In 2023, Damotech acquired Mac Rak, and its brand has since been integrated under the Damotech umbrella.

Several rack repair and protection products, including DAMO AISLE GUARD, have been rebranded to reflect the Damotech name while maintaining their proven quality and reliability.

I have multiple facilities across the country. Can you service them all?
FAQ arrow

Of course. One of the advantages of having a bolt-on solution is the consistency achieved by using these products in a systematic manner. Damotech has a network of specialized dealers that can service your warehouses regardless of geographic location. Large corporations choose Damotech for their national coverage and dependability.
