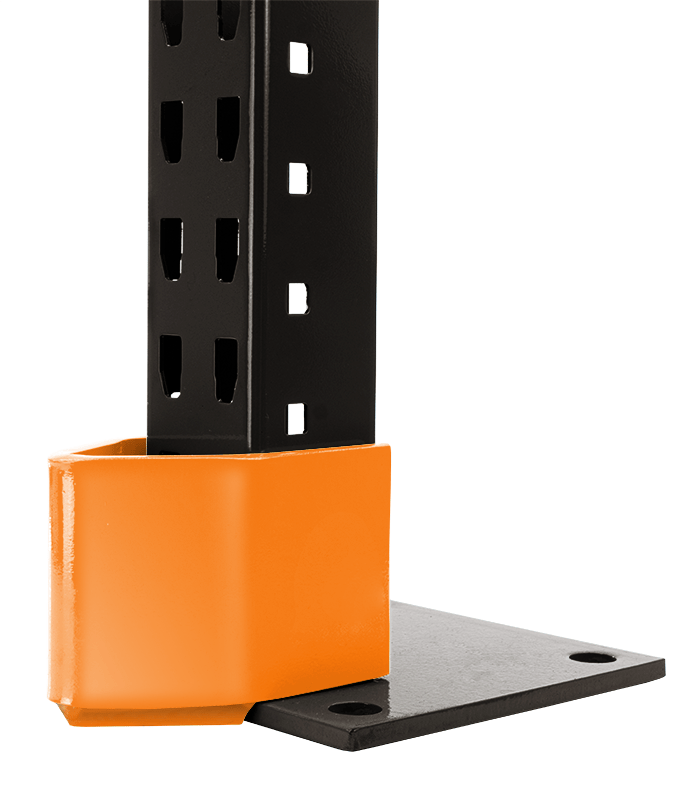

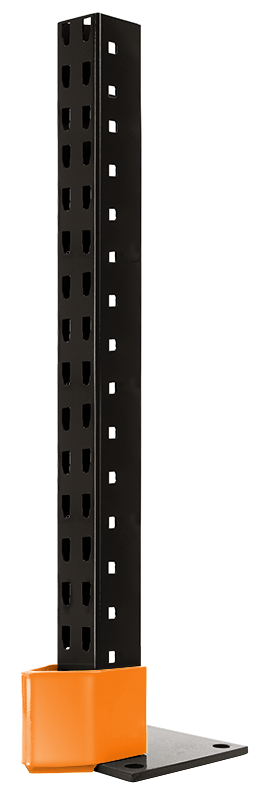

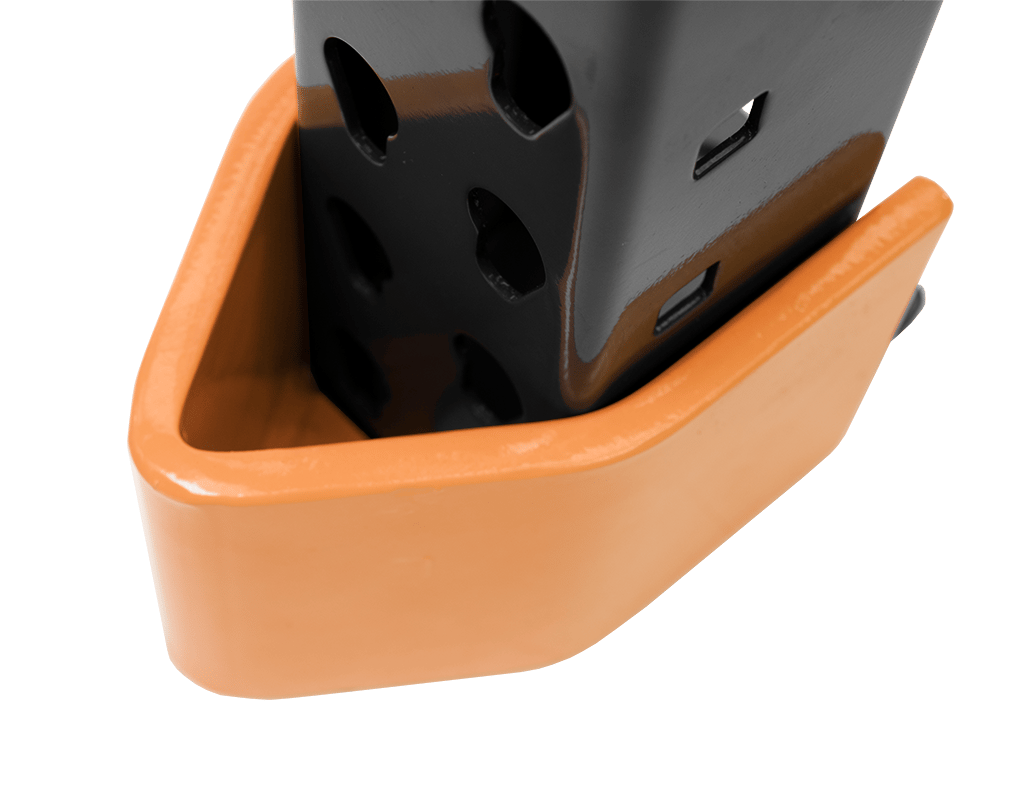

DAMO NOSE GUARD Rack Column Outrigger Protection - Closeup View

Low-Guarding That's Engineered for Strength

Crafted from durable ⅜" thick steel, DAMO NOSE GUARD offers exceptional resistance to wear and tear caused by forklift outriggers. Its bolt-style installation, secured with a robust 3/4" x 7" wedge anchor at the front, ensures high impact resistance and stability. Additionally, the powder-coated paint finish provides long-lasting protection against corrosion and wear, ensuring both durability and a professional appearance.

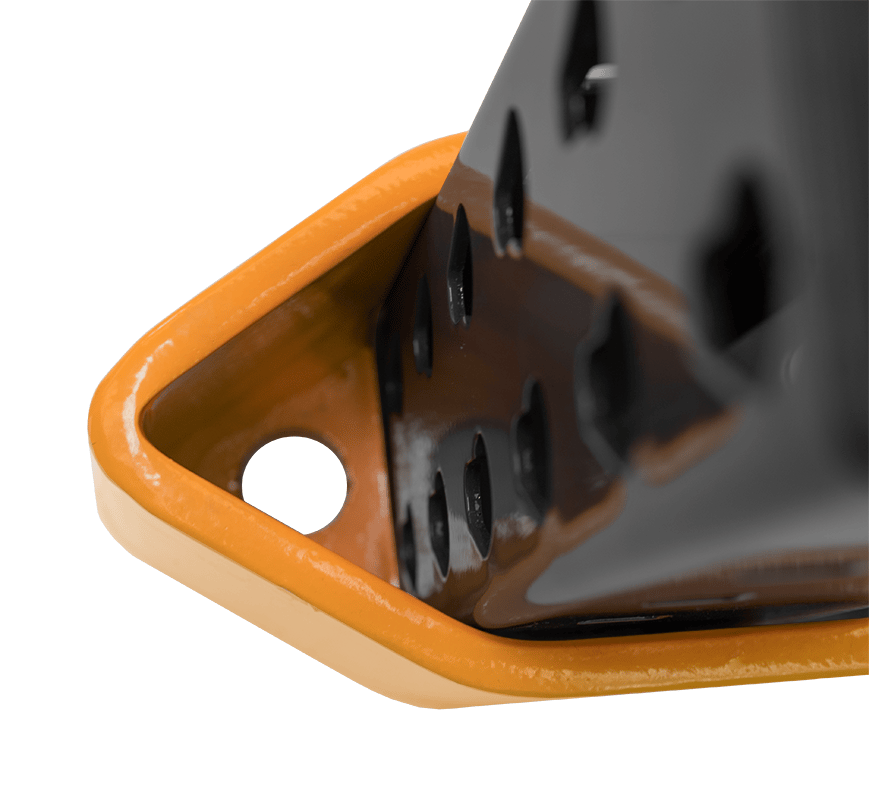

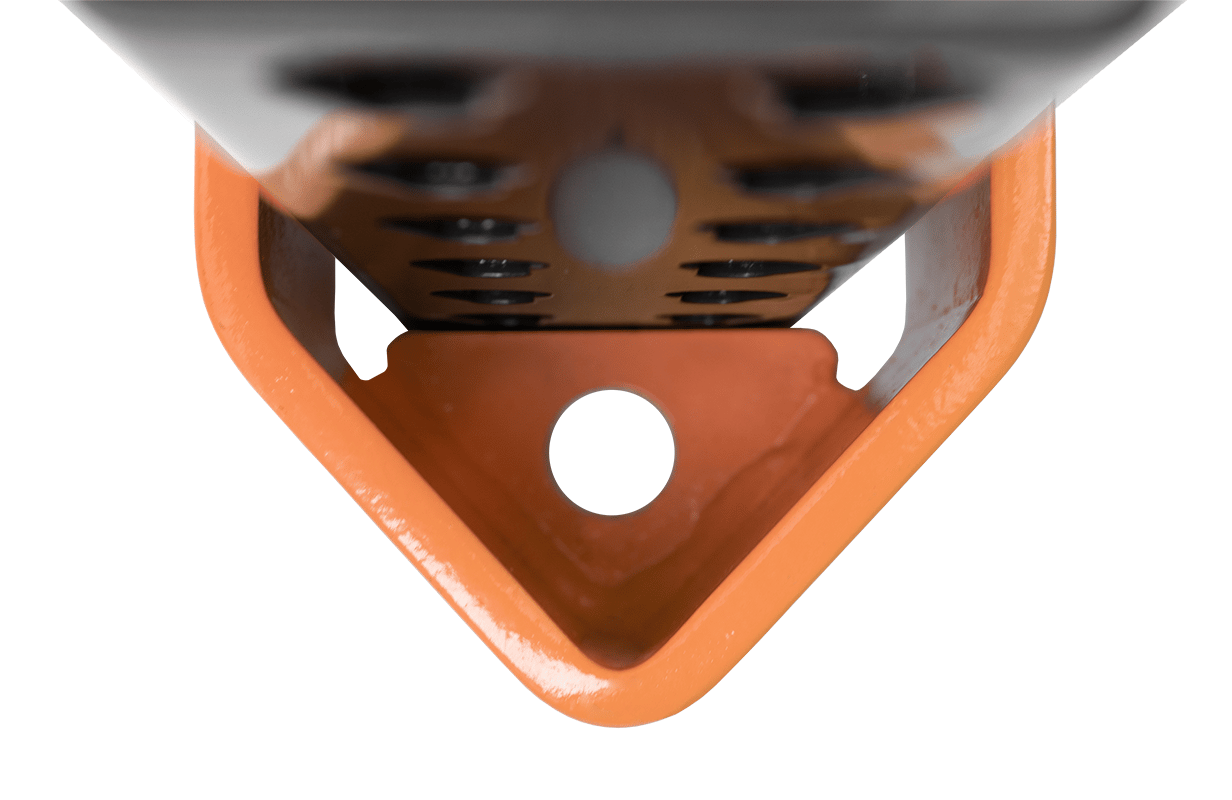

DAMO NOSE GUARD Rack Column Outrigger Protection - Closeup Inside View

Durable Rack Column Protection

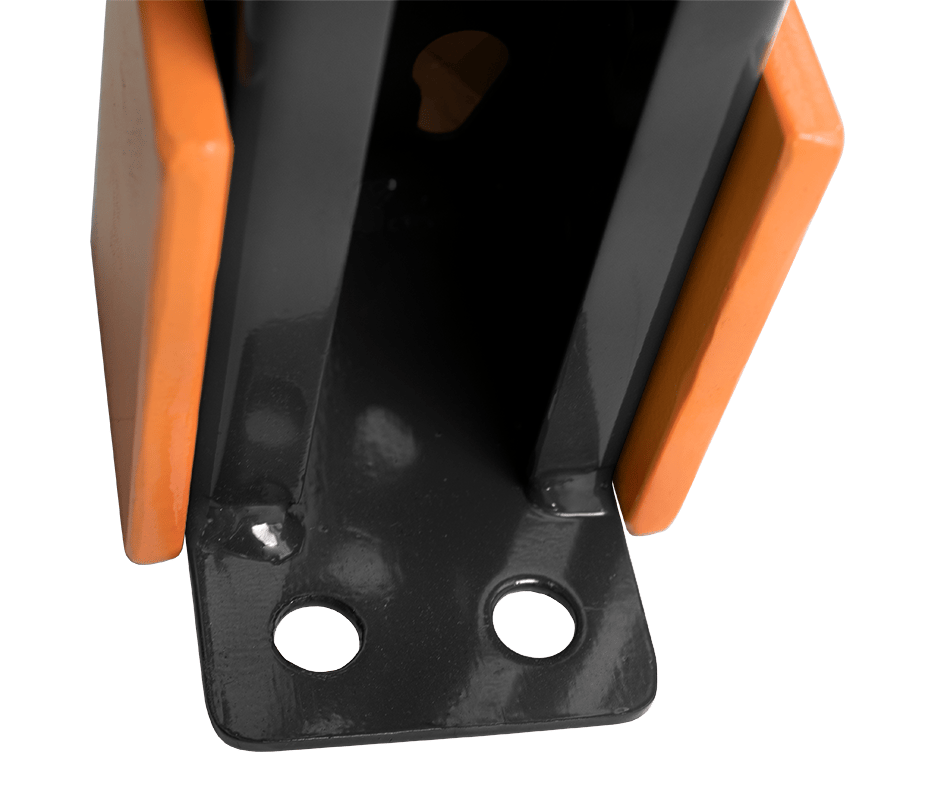

The 3/8″ thick footplate can be set flush or below the guard sufficiently to accommodate various footplate dimensions. DAMO NOSE GUARD column protector is highly customizable, accepting various column widths and setbacks. It is not a flimsy wrap-around boot, it is a heavy-duty steel column guard that will protect your pallet racks from costly future damage.

Benefits of DAMO NOSE GUARD

Heavy Duty

We use high-quality structural steel with a heavy gauge to offer maximum impact resistance.

For Any Type of Rack

DAMO NOSE GUARD will protect any rack, even those no longer manufactured.

Solidly Anchored

All of our products come with the necessary anchors. They are robust and easy to install.

Structurally independent

It is designed to be structurally independent of the rack system and protect against forklift impact.

Safer Warehouse

A safe warehouse is good for everyone; it reduces stress for managers and is likely to increase employee productivity.

Bolt-On Kits

Our guards are the toughest on the market and welded at our manufacturing plant. No welding is required on-site.

CONTACT US

Our protection products are meant to help you prevent pallet rack damage before it happens, eliminating the need for costly replacement and contributing to the improvement of safety in your warehouse. We recommend starting with areas where forklift traffic is heavy, at the end of aisles where there is a greater risk of contact with the racking system. Our robust line of protection units is a simple and inexpensive way of safeguarding your investment and protecting your employees.

Permanent

Our protection products are permanent and robust, come with a warranty, and offer full peace of mind.

Quick Delivery

Lead time for Damotech products is short. Guarding units are generally ready to ship in weeks.

Less Disruptive

The installation process is quick and easy, and unloading is usually not required. All these reasons make our protection products a smart solution and a sound investment in the long term.

Our protection units come in standard sizes but can also be made to measure for your specific needs. We'll custom-build the units to your requirements, regardless of dimensions, finish, or rack configuration.

Our experts will visit your warehouse, make all the necessary measurements, and specify the right product for each location.

Our certified installers or your maintenance crew can install our protection products in minutes. It's a simple and inexpensive way of protecting your racking investment against forklift outrigger damage.

All of our products come with the necessary anchors. They are time-saving and easy to install.

At Damotech, we stand behind our products. DAMO NOSE GUARD comes with a 10-year manufacturer's warranty. This means we guarantee the product will be free from defects in material and workmanship.

Download Warranty Sheet

1 2 3 4 5
1 Existing Rack Frame
Existing rolled-formed or structural racking frame.
2 Front Deflector
V-shaped 4" tall, 3/8" thick, protects the front frame post.
3 Column Side Protection
Protects your rack column sides.
4 Powder-Coated Paint
Powder coat painted to standard safety yellow or orange. Other colors are available for additional fees.
5 Concrete Anchors
A 3/4" x 7" anchor is included with our nose guard. The guard design ensures the impact energy is transferred to the floor.

Product sheet - DAMO NOSE GUARD

FAQ

Has an engineer tested your protection solutions?
FAQ arrow

Yes. All our products are tested and approved by professional engineers and are put through rigorous testing before they become part of our product line.

What kind of paint do you use on your products?
FAQ arrow

Our products are powder-coated. This means a high-quality finish that withstands the roughest and toughest conditions. It provides a durable and attractive finish that reduces the risk of scratches, chipping, abrasions, corrosion, fading, and other wear issues.

Can I purchase a galvanized version of your products?
FAQ arrow

Yes, you can. All our products can be galvanized—an additional fee applies.

Why is pricing not listed on your website?
FAQ arrow

We don’t skirt around the subject of pricing. We like to know what things cost, too.

Our rack protection and repair products are made-to-measure. Consequently, our pricing will factor in size, geographic location, volume, freight, and installation costs. A rack expert will most likely visit your warehouse to assess the damage and take the necessary measurements for a perfect product fit and a detailed quote containing no surprises.

To get more information on pricing, request a free quote or call 1 (877) 990-3266, and let us demonstrate the value of our products and services.

Was DAMO NOSE GUARD previously a Mac Rak product?
FAQ arrow

Yes, DAMO NOSE GUARD was originally a Mac Rak product. In 2023, Damotech acquired Mac Rak, and its brand has since been integrated under the Damotech umbrella.

Several rack repair and protection products, including DAMO NOSE GUARD, have been rebranded to reflect the Damotech name while maintaining their proven quality and reliability.

I have multiple facilities across the country. Can you service them all?
FAQ arrow

Of course. One of the advantages of having a bolt-on solution is the consistency achieved by using these products in a systematic manner. Damotech has a network of specialized dealers that can service your warehouses regardless of geographic location. Large corporations choose Damotech for their national coverage and dependability.

Rack safety expert

TALK TO AN EXPERT

Want to learn more about our DAMO NOSE GUARD? Fill out this form and we'll send you a quote or schedule an on-site assessment, and answer any question you might have!
